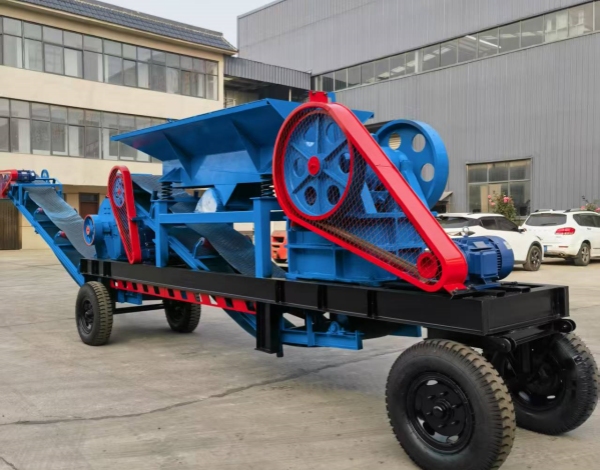

200TPH Sand-making Washing Plant

The 200TPH Sand-making Washing Plant consists of a jaw crusher, a sand-making machine, a sand-washing machine, and belt conveyors. The vibrating feeder evenly transports the materials to the jaw crusher for coarse crushing. The coarse crushed material is sent to the sand-making machine by a belt conveyor for further crushing. Finally, the fine material enters a vibrating screen for screening. Material that meets the particle size requirements enters the sand washing machine for cleaning.  After cleaning, it is output by the final product conveyor belt as the final product. Materials that do not meet the particle size requirements of the final product are returned from the vibrating screen to the sand-making machine for reprocessing, forming a closed loop with multiple cycles.

Equipment Used

Hopper

Vibrating feeder DN4911

Primary jaw crusher PE-750*1060

Cone crusher DN1400

Vibrating screen 2YD2160

VSI DN9000

3-layer vibrating screen 3YD2160\

Sand Washing Machine

Belt conveyors.

Flow Description

Use a truck to transport the granite material to Hopper.

The granite material fell into a vibrating feeder( DN590*110 )because of the height difference.

The granite material is transported to the jaw crusher(PE-750*1060) by the vibrating feeder. The material is for the first crushing through the jaw crusher.

After first crushing the output from the jaw crusher is transferred by belt conveyor to secondary crushing machine compound cone crusher(DN1400) to get a smaller size.

Then the smaller size goes the 2 layers vibrating screen(2YD2160) to get 3 product, screen mesh size 35mm and 5mm, the first size is size over 35mm go back to cone crusher for crushing to small size, the second middle size 5-35mm transport to transit hopper by belt conveyor to sand making machine (DN9000)to get fine material and transport to second vibrating screen(2YD2470), and third size 0-5mm material transport to second vibrating screen(2YD2470).

When the material gets to the second vibrating screen(2YD2470).mesh size is 10mm and 5mm, the size over 10mm go back to transit hopper to sand making machine(DN9000), the 5-10mm material go the first output product, the size second output 0-5mm go to the sand washing machine to get a clean product. And finally get output size 0-5mm,5-10mm.

Supplement:

The flow chart can also be revised by the client’s requirement.
