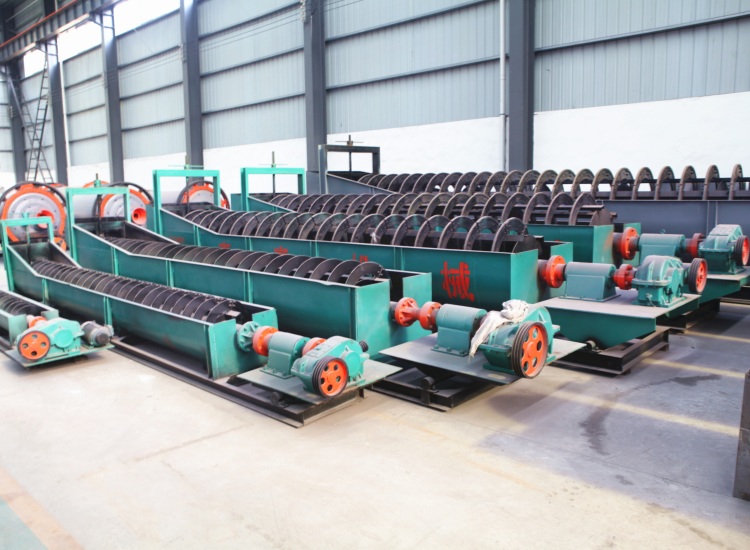

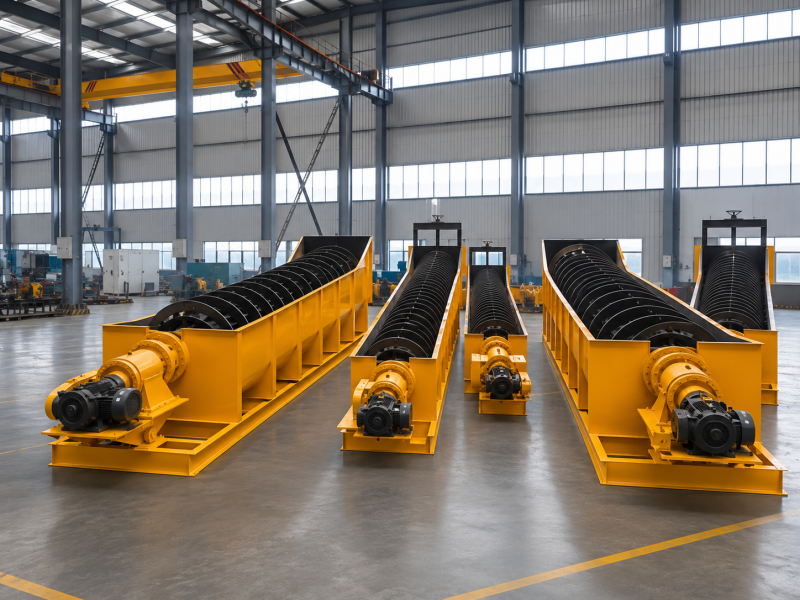

Spiral classifier plays a very important role in the grinding operation. The spiral classifier is used in conjunction with the ball mill to form a closed-loop circulation process in the mineral processing operation. The minerals that meet the particle size requirements are discharged from the flow channel end to the lower process flow as finished products, and the coarse sand returns to the ball mill for re-grinding. Spiral classifier is widely used in mineral processing plants.
Application: limestone, talc, graphite, barite, mica, etc.
Ensures precise separation of particles by size and density.
Made of wear-resistant steel or polyurethane for longevity in abrasive environments.
Low Energy Consumption: Efficient spiral design minimizes power usage.
Modular components and accessible drive systems simplify repairs.
Adaptable to wet or dry processing, with customizable trough angles and lengths.
Reduces water and energy costs while maximizing mineral recovery.
| Model | Spiral diameter(mm) | Speed of Spiral(r/min) | Power（kw） | Slope (°) | Trough Length（mm） | |
|---|---|---|---|---|---|---|
| Sand Return (t/h) | Overflow (t/h) | |||||
| FG500 | 500 | 8-12.5 | 6-11 | 32 | 12-18 | 4500 |
| FG750 | 750 | 6-10 | 11-24 | 65 | 12-18 | 5500 |
| FG1000 | 1000 | 5-8 | 25-45 | 110 | 12-18 | 8400 |
| FG1200 | 1200 | 4-6 | 50-80 | 155 | 12-18 | 8400 |
| FG1500 | 1500 | 4-6 | 70-115 | 235 | 12-18 | 10500 |
| FG1800 | 1800 | 2.5-6 | 100-190 | 310 | 12-18 | 10500 |
| FG2000 | 2000 | 3.6-5.5 | 160-230 | 400 | 12-18 | 12900 |
- Mineral Processing: Grade ores (e.g., iron, gold, copper) by particle size in closed-circuit grinding systems.
- Sand and Gravel Washing: Remove impurities and classify sand for construction or industrial use.
- Coal Preparation: Separate fine coal from refuse in coal washing plants.
- Industrial Slurry Handling: Dewater and transport tailings in chemical or metallurgical processes.
- Environmental Remediation: Treat wastewater or contaminated sediments in recycling facilities.
