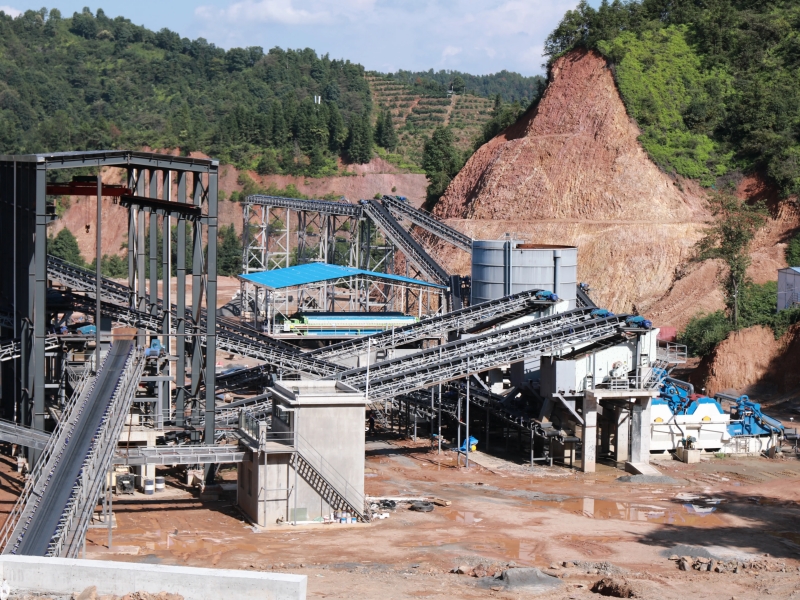

Production capacity: 150-250 t/h
MaxFeeding size: 80-120 mm
Core Equipment: ZSW1142 vibrating feeder, PE750×1060 jaw crusher, CS220 cone crusher, VSI9526 sand making machine, SVK1860/3YK2460 vibrating screens, XL1150×9m sand washing machine and YTS2252 sand dewatering machine.
Application areas: Construction engineering, road and bridge construction, water conservancy engineering, municipal engineering, mining, and industry.
| Category | Equipment | Model | Quantity | Function |
|---|---|---|---|---|
| Feeding & Primary Crushing | Vibrating Feeder | ZSW1142 | 1 set | Uniformly feeds raw stone and removes impurities |
| Jaw Crusher | PE750×1060 | 1 set | Coarse crushing of large raw stone to ~250mm | |
| Secondary Crushing | Cone Crusher | CS220 | 1 set | Fine crushing to produce sand-making feed material |
| Screening System | Vibrating Screen | SVK1860 | 1 set | Pre-screens crushed material to separate initial aggregates |
| Vibrating Screen | 3YK2460 | 1 set | Final screening to grade finished aggregates and sand | |
| Sand Making & Shaping | VSI Sand Making Machine | VSI9526 | 1 set | Shapes particles into cubical manufactured sand via high-speed impact |
| Washing & Dewatering | Sand Washing Machine | XL1150×9M | 1 set | Washes sand to remove mud and fine impurities |
| Sand Dewatering Machine | YTS2252 | 1 set | Dewaters washed sand to reduce moisture content for immediate use | |
| Conveying System | Belt Conveyors | B500/B650/B800/B1000 | 9 sets | Transports material between all processing stages |
Optimized heavy-duty equipment matching ensures consistent high-capacity production for large-scale sand demand.
VSI9526 sand making machine produces well-graded, cubical sand particles ideal for high-strength concrete and highway construction.
Sand washing and dewatering system ensures finished sand has mud content <3% and moisture content <6%, meeting strict construction standards.
Closed-circuit design and multi-stage screening minimize material loss, maximizing the ratio of finished sand to raw material.
The plant can produce multiple graded aggregates (0-5mm, 5-10mm) alongside sand, adapting to diverse project needs.
All core equipment features wear-resistant materials and low power consumption design, reducing operational costs.
Modular layout and belt conveyor system simplify operation, with easy access for maintenance and part replacement.

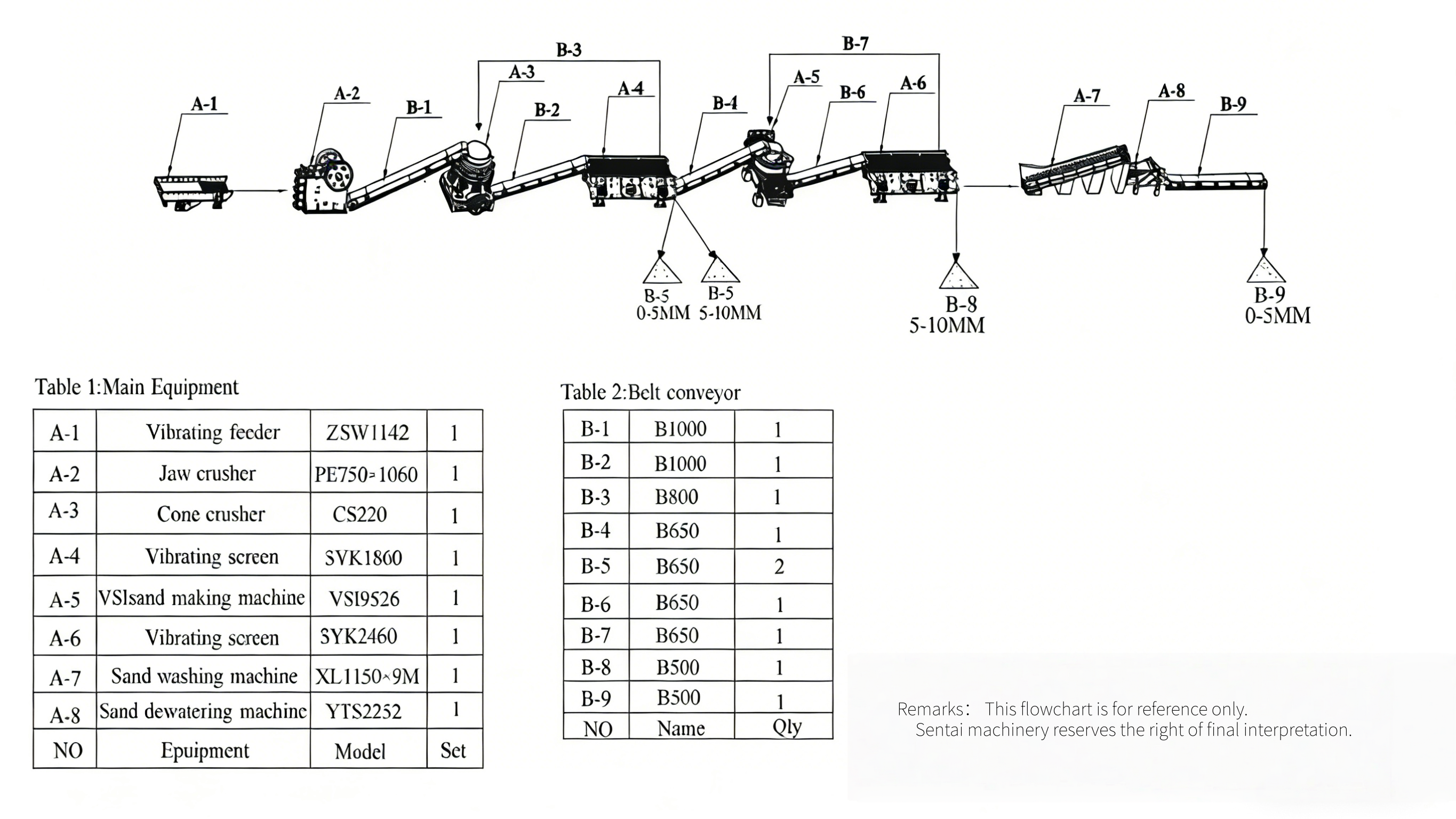

Raw stone is fed into a PE750×1060 jaw crusher via a ZSW1142 vibrating feeder for coarse crushing, reducing large rocks to ~250mm.
Coarse crushed material is conveyed to a CS220 cone crusher for fine crushing, producing particles suitable for sand making (≤60mm). Oversized material is returned to the cone crusher via conveyor B-3 for reprocessing.
Fine crushed material is screened by an SVK1860 vibrating screen, separating 0-5mm and 5-10mm initial aggregates, while oversize material is sent to the VSI sand making machine.
Oversize particles enter a VSI9526 sand making machine for high-speed impact crushing and shaping, creating cubical sand particles.
Shaped material is screened by a 3YK2460 vibrating screen, producing 5-10mm finished aggregates, while 0-5mm material proceeds to washing. Oversized material is returned to the VSI via conveyor B-7.
0-5mm sand is washed in an XL1150×9M sand washing machine to remove mud and impurities, then dewatered by a YTS2252 sand dewatering machine to produce clean, low-moisture 0-5mm finished manufactured sand.
Note: Stcrushers can customize a set of 150-250 tph Sand Making Plant according to customer's needs.
