A lime kiln (also known as an active lime kiln) is the core equipment for calcining active lime and lightly burned dolomite used in iron and steel plants, ferroalloy plants, calcium carbide plants, and magnesium metal plants.

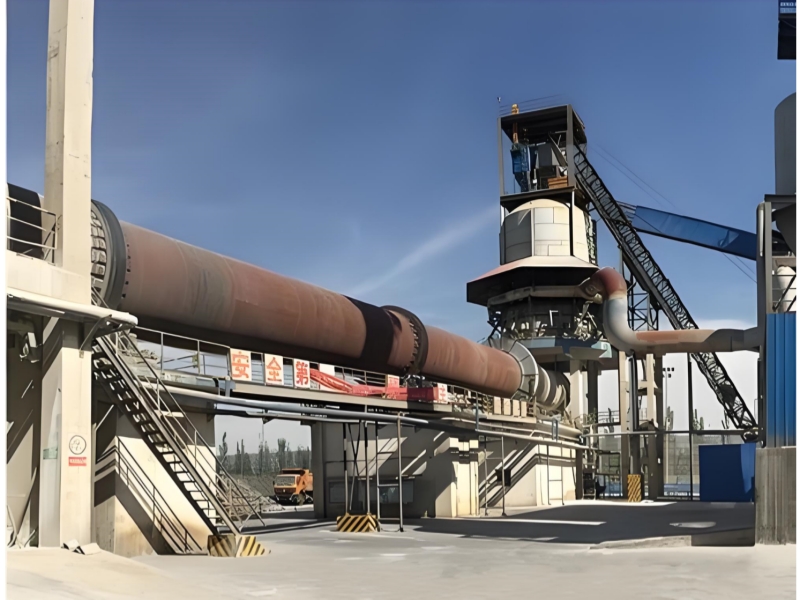

Sentai Machinery supplies a lime rotary kiln production line for limestone calcination to quicklime, with stable calcination control, flexible fuel options, and dust/emission management for project delivery.
| Equipment Type | Option (Example) | Function |
|---|---|---|
| Storage & Feeding | Hopper + Belt Feeder / Vibrating Feeder | Stable limestone feeding |
| Size Control (Optional) | Crusher + Screen | Match kiln feed size |
| Rotary Kiln (Lime Kiln) | Sentai Customized | Main calcination unit |
| Burner / Heat System | Fuel-configurable (by project) | Heat supply based on local conditions |
| Cooling System | Rotary Cooler / Cooling Solution | Cooling for safe handling |
| Dust Collection | Cyclone + Pulse Bag Filter | Dust capture and emission control |
| ID Fan & Ducting | Sentai Customized | Airflow and negative pressure control |
| Conveying & Storage | Belt Conveyor + Silo/Packing | Product transfer and storage |
| Control System | PLC Control Cabinet | Central monitoring and operation |
Controlled calcination profile supports consistent quicklime activity and product quality.
Thermal design, insulation, and optional heat utilization measures help improve efficiency and reduce fuel consumption.

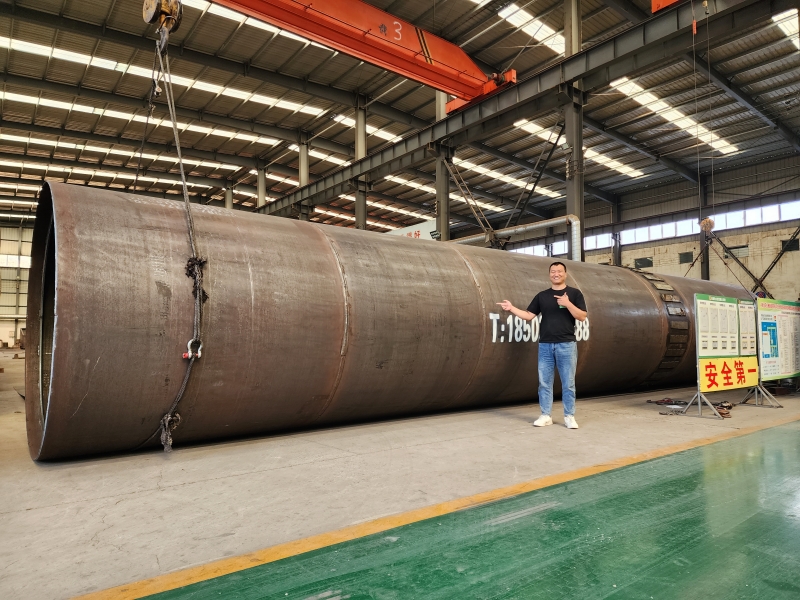

Heavy-duty kiln structure and appropriate refractory lining options support continuous service.
Sealed interfaces, controlled airflow, and dust collection support compliance and cleaner plant operation.

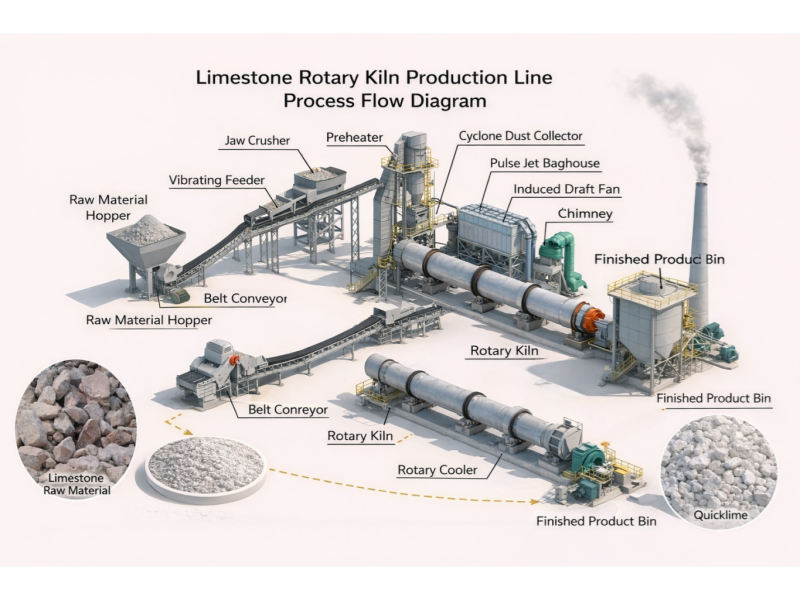

Limestone is fed via hopper/feeder; screening/crushing can be added to match the kiln feed size requirement.
Depending on moisture and efficiency targets, a preheating or drying arrangement can be considered.
Limestone is calcined in the rotary kiln under a controlled temperature profile to produce quicklime with the required activity.
Quicklime is cooled for safe handling and stable downstream processing.
Dust is captured through dust collection (commonly cyclone + bag filter) and airflow control; additional measures can be integrated per local standards.
The cooled quicklime is conveyed to silo/storage or packing system for shipment.
Note: Stcrushers can customize a set of Lime Rotary Kiln Production Plant according to customer's needs.
